A professional plate fin-and-tube heat exchanger design software
Try Demo version today!

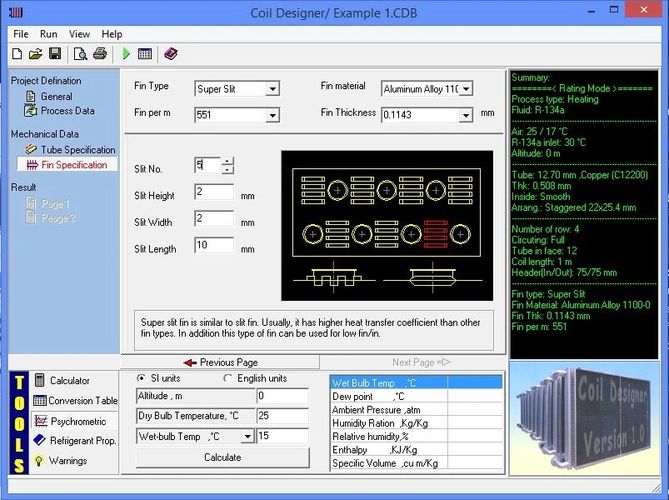

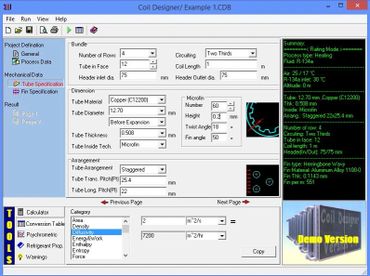

coilthermaldesigner interface
About our product
Reliable Software for HVAC Professionals
CoilThermalDesigner an advanced Fin-and-Tube Heat Exchanger thermal design/rating/optimization software exclusively developed by professionals and engineers, for designers and manufacturers.
Some major capabilities of CoilThermalDesigner are modeling of new fin designs, new refrigerant fluids, and calculation of partially-wet air-side surface
Individualized HVAC Options
Microfin inside tubes with variable detail are available in CoilThermalDesigner. These fins can be used in compact evaporators and condensers.
The design of CoilThermalDesigner targeted ease of use, wide applicability, and overcoming the limitations of other similar packages.
Customer Satisfaction Guaranteed

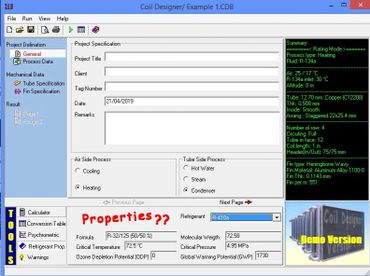

CoilThermalDesigner , a software with user-friendly standard graphical user interface.
Our software covers designing of almost all fin-and-tube Heat Exchangers in the field of Air Conditioning and Refrigeration, although the application is not limited to HVAC and refrigeration area.
Unique Capabilities of CoilThermalDesigner
Unique Capabilities
- Air side partially wet, and full wet coil calculations, applicable for cooling coils
- Condenser calculation with Superheated and Sub-cooled zones
- Evaporator calculation with Superheated zone

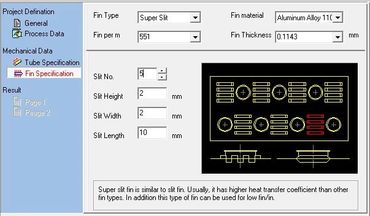

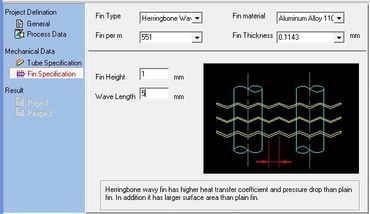

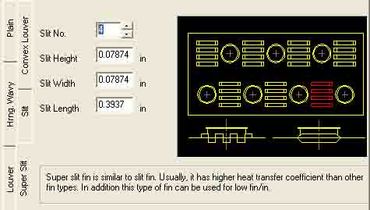

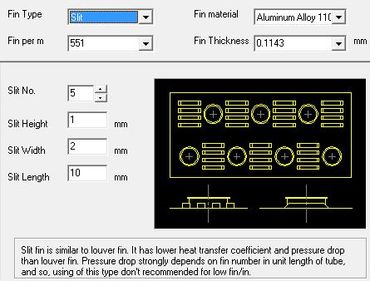

- Using of complex fins with variable dimensions; Wavy fins, Slit fins, SuperSlit fins, Louver fins
- Using Microfins inside DX-Evaporator or condenser coils
- Most of calculations are based on ARTI and NIST reports and ARI 410 Std
Other important Capabilities
- Designing new coils with optimized surface area and minimized pressure drops
- Comparing variety of coil configuration, circuiting, fin type, and fin density in one go

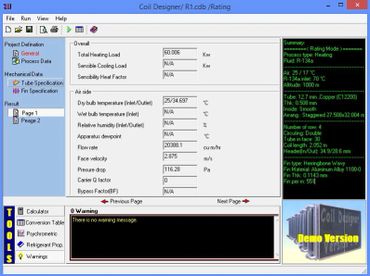

- Rating an existing coil to develop product catalogue and performance curves
- Updating product lines by replacing advanced fin plates and microfin inside tubes
Design and Rating Modes
- To design the coil with your desired capacity and minimize the coil surface area and the cost accordingly.
- To check the capacity of an existing coil in different conditions or seeing effect of parameters on the capacity.
